Choose the Right Fasteners for Installing Your Gallery System

When installing any picture hanging system, it's essential to affix the tracks securely to your wall, using the right fasteners for your specific installation.
closeup of screwdriver being used to install wall mount for a picture hanging system for art display

Because installations vary widely, most Gallery System art hanging systems don’t include fasteners; this helps minimize everyone’s cost and reduce waste. But we offer hardware kits for common drywall installations, and suitable fasteners for other wall types are readily available at your local hardware or home store, or online from a variety of sources.

Although our two gallery hanging systems use slightly different mounting techniques (GalleryOne is seen above, Original Gallery System at right) the basic principles are the same, so we’ll review them together.

Whichever one you’re installing you’ll first want to ascertain:

• What material is your wall made of? I.E., drywall/wallboard, plaster, brick, concrete, etc.

• If it’s a stud wall, like most drywall and plaster walls, what are the studs made of (generally wood or metal), and where are they located?

An electronic stud finder can be helpful determining location; studs are not always located on the standard 16-inch centers, especially in older buildings and homes.

closeup of screwdriver being used to install wall track for a picture hanging system for art display

It’s not unusual to need multiple types of fastener for a given installation, so it’s a good idea to do a detailed assessment and plan before going shopping. For planning purposes, keep the following in mind:

• For Original Gallery System picture hanging system installations, each full 78-inch section of Original Gallery System track should be supported by five fasteners; shorter sections should have one fastener every 16-18 inches.

• For GalleryOne installations, each full 54-inch section of GalleryOne track (and cut sections greater than 36 inches long) should be supported by four wall mounts, one at each end and two evenly spaced in the middle. Sections shorter than 36 inches can use a mount at each end plus one in the middle, and the middle mount is not needed on sections less than 18 inches long.

With that information, you can choose the right hardware for your wall material(s).

If your drywall or plaster wall has wood studs behind it, you can use one of the simplest mounting methods: #8 wood screws (top item in the photo at right) driven securely into the studs. Be sure to select screws that are long enough to extend at least 1-1/2 inches (3.5-4 cm) into the stud after passing through the Original Gallery System art hanging track (which is about 1/16 inch thick) or GalleryOne wall mount (which adds about ¼ inch) and the wall material.

For common ½ or 5/8-inch drywall/wallboard walls, a 2.5 or 3-inch fastener will suffice; plaster walls are often thicker, and may require more length.

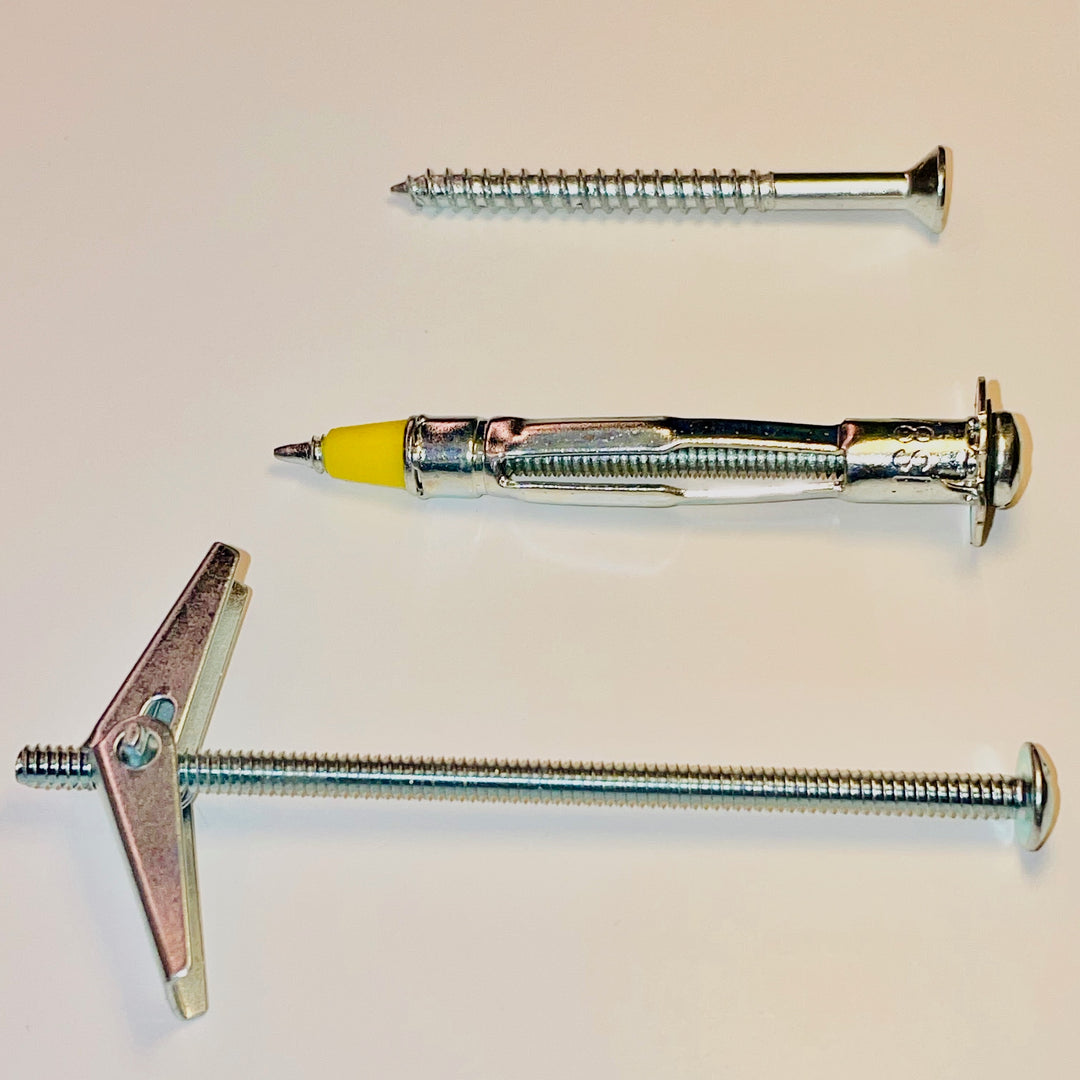

wood screw, bolt with expanding wall anchor, and toggle bolt

You may find that you need to affix track at points where no stud is available; in this case, use expanding wall anchors, also known as molly bolts (middle of photo above), or 1/8-inch toggle bolts (bottom of photo above).

If your wall has metal studs, you will need to use expanding wall anchors (molly bolts) or 1/8-inch toggle bolts in all locations.

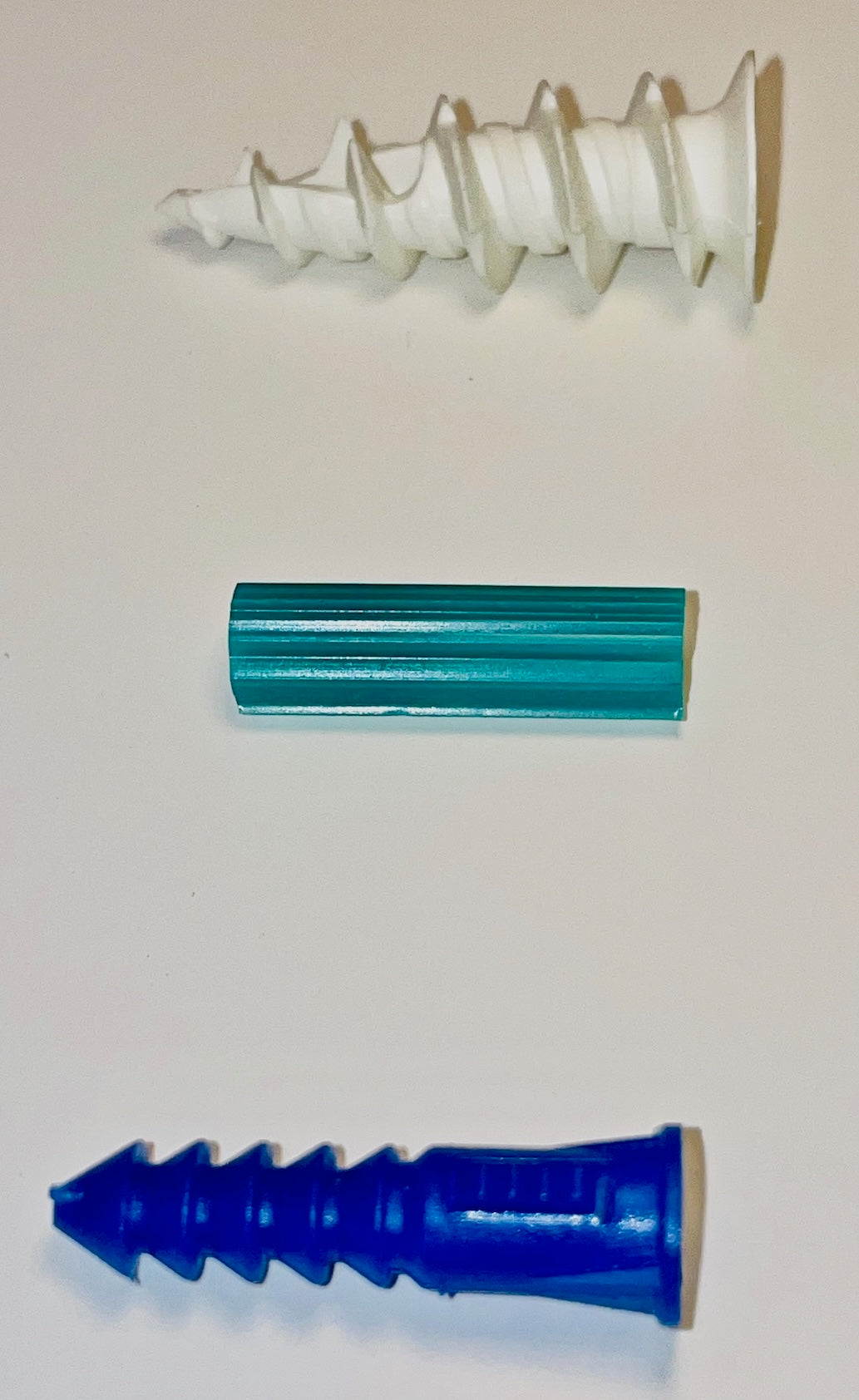

three light duty plastic drywall anchors for screws

Whatever your situation, please do NOT use light-duty fasteners, like the plastic wall anchors shown at left, as they do not have adequate strength for art gallery hanging system applications.

On brick, concrete, or masonry walls, use #8 or 1/8-inch fasteners in combination with compatible medium-duty or heavy-duty anchoring hardware. Look for working load capacity of 100 pounds or more.

Nylon wall anchors (top in photo at right) are a versatile choice that can accommodate machine screws and wood screws, while providing good strength in concrete, block, or brick walls.

Another option is machine screw anchors, (bottom at right). These are made of lead and often require use of a special setting tool; they can be used in concrete or block walls.

Carefully follow the fastener manufacturer’s instructions to ensure robust attachment of your art hanging system.

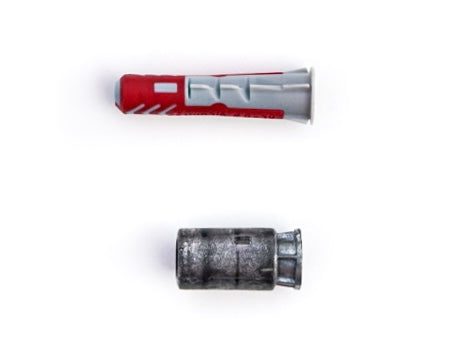

two expanding wall anchors for screws - top one of plastic, bottom one of lead

If your situation is not covered here, or if you have questions about your installation, please contact our experienced customer service team by calling 800-460-8703, emailinginfo@gallerysystem.com, or use our simple Contact Form.
